Marine CCTV Camera
VCH109Z Marine Corrosion Proof Camera with IR
Main Features :
Stainless steel 304 or 316L electropolished
· Enclosure Protection: IP68
· Power input: DC12V or POE power supply
· With lights for night vision: 30m distance
· Camera resolution: 4MP
Specification
Camera type | 4MP |
Atmospheric pressure | 80KPa～110Kpa |
Ambient Temperature | –40°c～+60°C |
Relative Humidity | ≤95% （ +25°c） |
Ingress Protection | IP68(2m/2h) |
Housing Material | Stainless Steel 304 or 316L |
Image Sensor | 1/3" Progressive Scan CMOS |
Signal | PAL/NTSC |
Max. Image Resolution | 2592*1520,25fps |
Frame Rate | Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
Min. Illumination Shutter | Colour:0.01Lux (F2.0, AGC ON) 0Lux with IR on 1/3 sec to 1/100,000 sec |
Lens | 4mm (6mm optional) |
Lens of angle | 4mm @ F2.0, 82°(H), 41.6°(V); 100.9°(O) |
Day& Night: | IR cut filter with auto switch |
Image Enhancement | 2D/ 3D DNR |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client
software or web browser |
Communication interface | 1 RJ45 10M / 100M ethernet interface |
ROI | Support 1 fixed region for mainstream and sub stream separately |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Video bit rate | 32kpbs~12Mbps |
Dual streams | Support |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP,
RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,
SNMP, QoS |
General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
System Compatibility | ONVIF (Profile S, Profile T), API |
Light night vision | 0-30m |
Voltage Input | DC12V/ POE(802.3af) |
Power consumption | 5w Max |
Cable output | Integrated cable, 2m long |
Cable gland | 1pcs G3/4 or M27*1.25
|
Overall dimension LxWxH | 168*150*148mm |
Net weight | 4.3 kg |

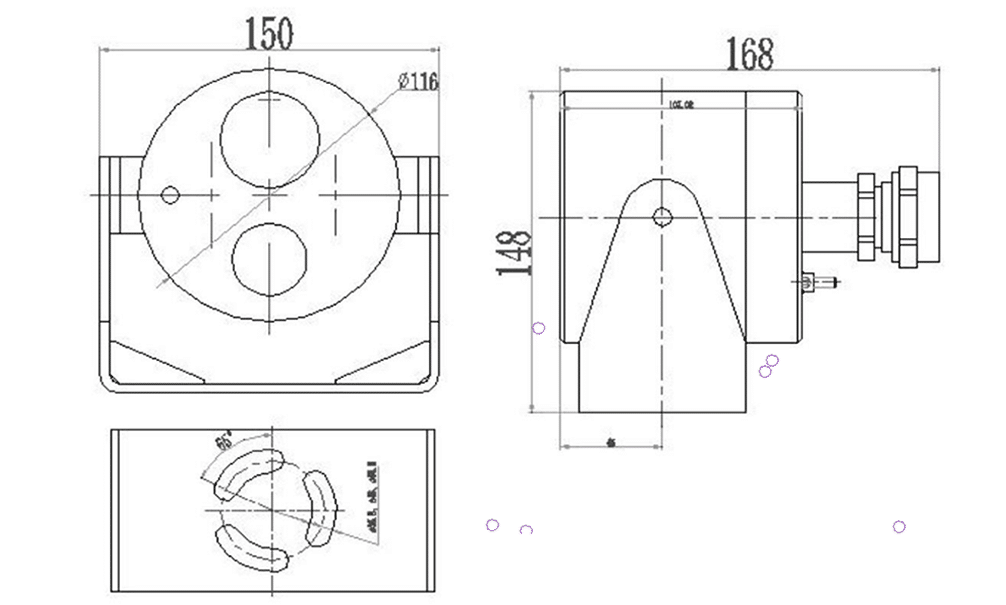

Dimension：

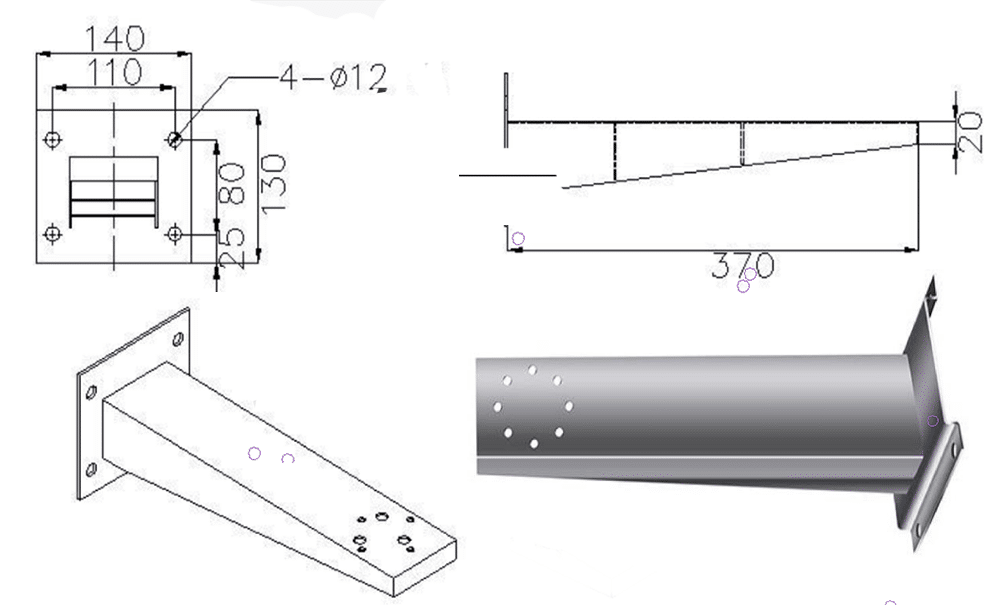

VCH109Z Wall Bracket:
General:
| Material | Stainless steel 304 or 316L |
| Max Loading | 20kg |
| Weight | 1.8kg |
