Application
City Road monitoring / expressway monitoring / railway monitoring / substation monitoring / high-rise building peripheral monitoring / coastal defense monitoring

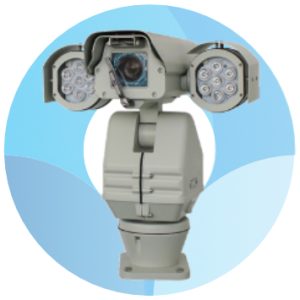

Features
Integrated with weather-proof high speed PTZ | It combines with cameras, intelligent PTZ and decoder, cover housing, wipers, automatic heater, windows defroster and defogger, sunshield housing. | It integrates with high-end motor, good stability, and low noise. | Heavy wind resistance, smoothly running, ensure accurate positioning. | With infrared LED range up to 150 meters, it could capture image promptly at night.
IR illuminator
PTZ adopts imported array infrared lights,multi-angle work together, the working life up to 30,000 hours, night vision is 150 meters
HD IP
PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
Product Technical Data:
VPS-IR | |
Pan preset speed | 100°/s |
Tilt preset speed | 30°/s |
Pan control speed | 0°~40°/S |
Tilt control speed | 0°~20°/S |
Pan range | 360°endless rotation |
Tilt range | +35° ~ -70° |
Preset positions Tracking | 256 positions 6 tracking |
Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
Relative Humidity | Less than 90% |
IP Grade | IP 66 |
Working Temperature | -30° ~ +70° |
Power Consumption | DC24V/AC24V/AC110V/AC220V |
Impact resistance requirements | ≥4G |
Wiper | Support |
Installation | Variety of installation according to the environment |
Weight | 13kg |
Camera Module Data:
Model/Brand | VM-8233J/Videomarin | DS-2ZMN3007-JKB/Hikvision | |
Image Sensor | 1/3" Progressive CMOS | 1/2.8" Progressive CMOS | |
Effective Pixels | 1920x1080 | 1920x1080 | |
Optical Zoom | 33x, 4.6-152mm | 30x, 4.5-135mm | |
Aperature | F1.6-F4.8 | F1.6-F4.4 | |
Camera | Angle of View | 60.08-2.08° (Wide-Tele) | 65.1-2.34° (Wide-Tele) |
Day / Night | R-CUT, Auto, Color, B/W | IR-CUT, Auto, Color, B/W | |
MOD | 100mm~1500mm (Wide~Tele) | 100mm~1500mm (Wide~Tele) | |
Zoom Speed | 3 Sec. (Optical, Wide~Tele) | 3 Sec. (Optical, Wide~Tele) | |
Resolution | 50HZ:25fps(1920x1080, 1280x720) 60HZ:30fps(1920x1080, 1280x720) | 50HZ:25fps(1920×1080, 1280×960, 1280×720), 60HZ:30fps(1920×1080, 1280×960, 1280×720) | |
Mini Illumination | Color: 0.01Lux @(F1.6,AGC ON), B/W: 0.005Lux @(F1.6,AGC ON) | Color: 0.05Lux @(F1.6,AGC ON), B/W: 0.01Lux @(F1.6,AGC ON) |
Measures and Diagram:(mm)
Order Information:
VPS-IR-XXXXX
Camera Module Model: Videomarine: VM-8233J Hikvision: DS-2ZMN3007-JKB
